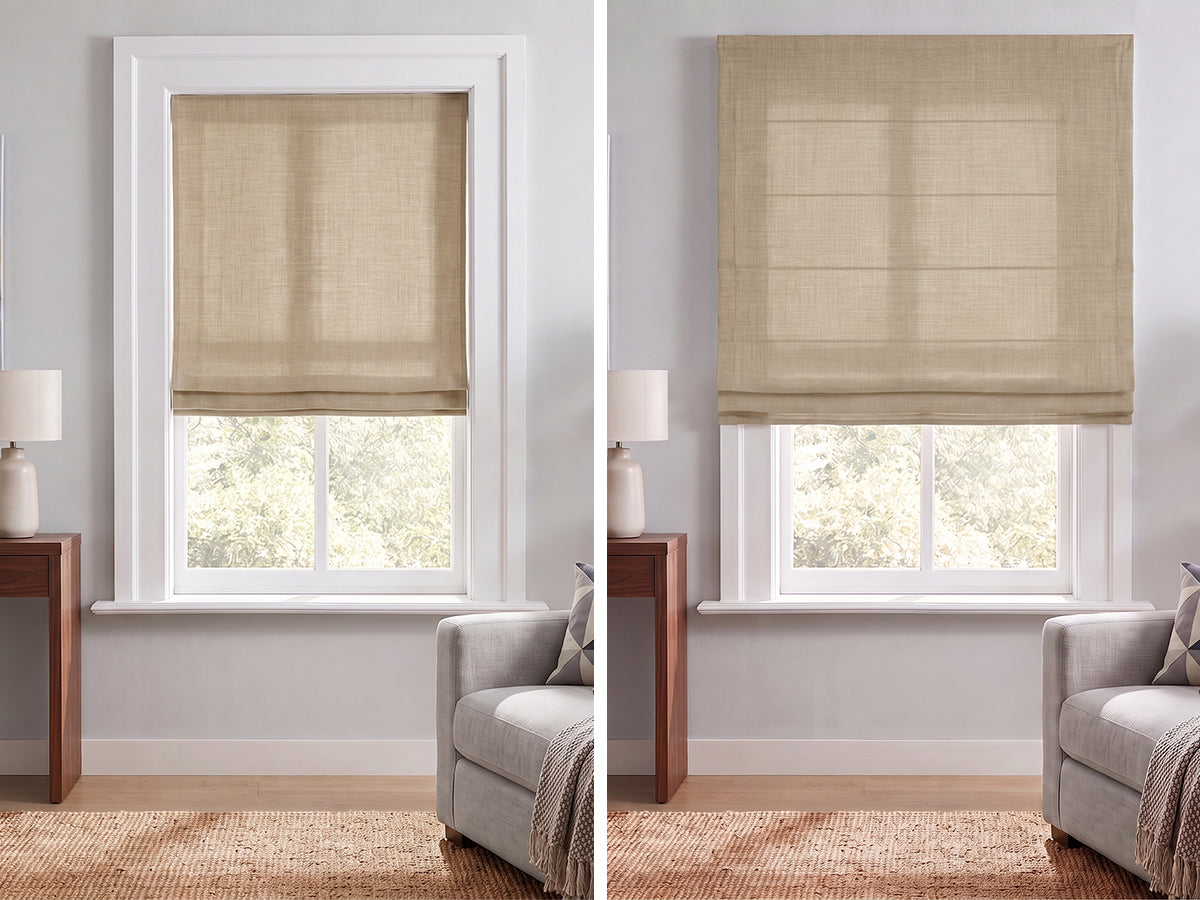

Inside Mount vs. Outside Mount

Which One Should I Choose?

Before measuring, decide whether you'd like your shades installed inside or outside the window frame.

Consejos para la instalación en montaje interior

  • Comprueba si tu ventana tiene suficiente profundidad para una instalación interior. Si la profundidad no es suficiente, ¡no te preocupes! Puedes ponerte en contacto con nosotros para recibir recomendaciones sobre estilos que requieran menos profundidad, o puedes optar por una instalación exterior.
  • Inspecciona el marco o revestimiento de la ventana para asegurarte de que sea lo suficientemente resistente para taladrar e instalar directamente.

Inside Mount

✅ Measure the Depth
Measure the frame depth at the top of the window. Most shades need at least 1.5" for an inside mount — minimum depth varies by shade type, so check the product page.

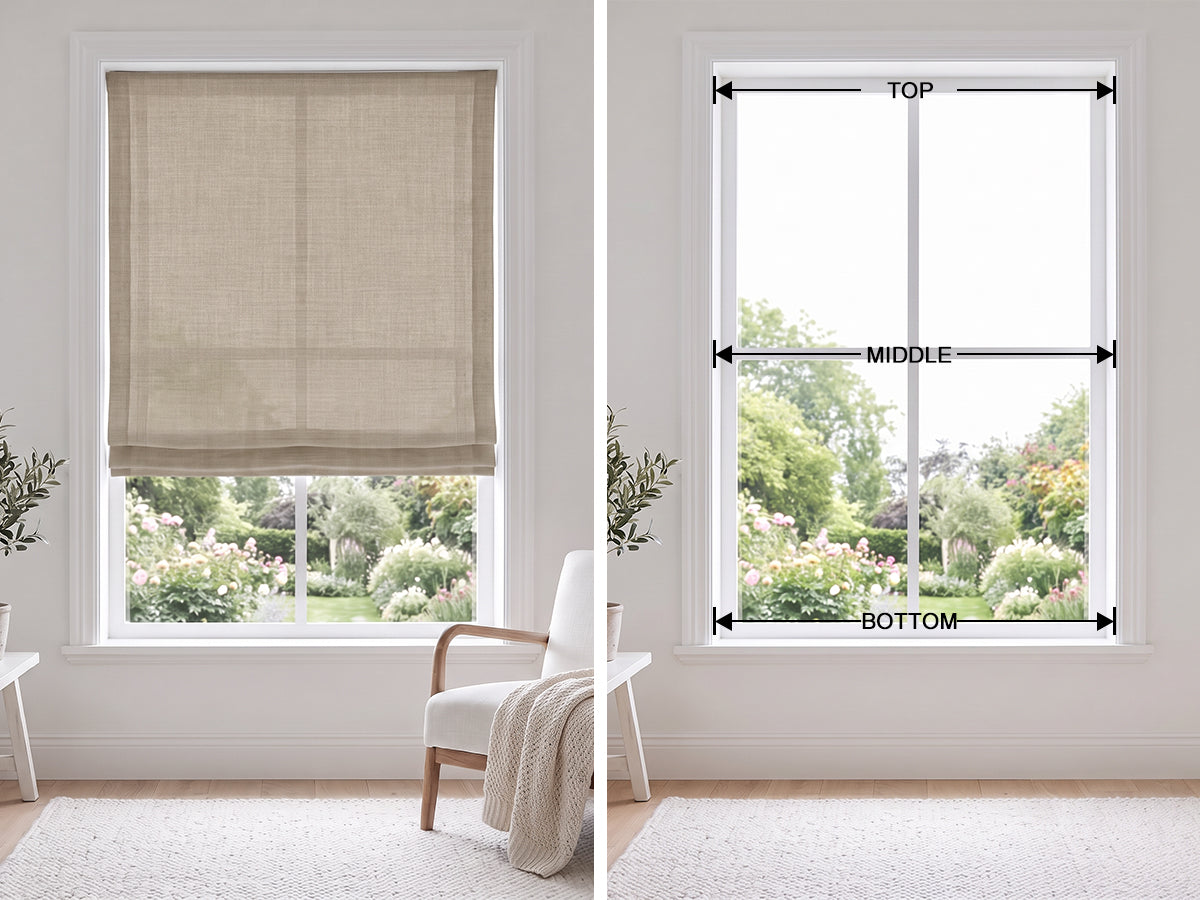

✅ Measure the Width
Measure inside the frame at three points: top, middle, and bottom. Use the narrowest measurement, rounded down to the nearest 1/8".

📏Inside Mount:Please enter your exact Window Frame Width. Our factory will automatically deduct 1/4" from your entered width for a perfect custom fit.

✅ Measure the Height
Measure inside the frame at three points: left, center, and right. Use the longest measurement, rounded down to the nearest 1/8".

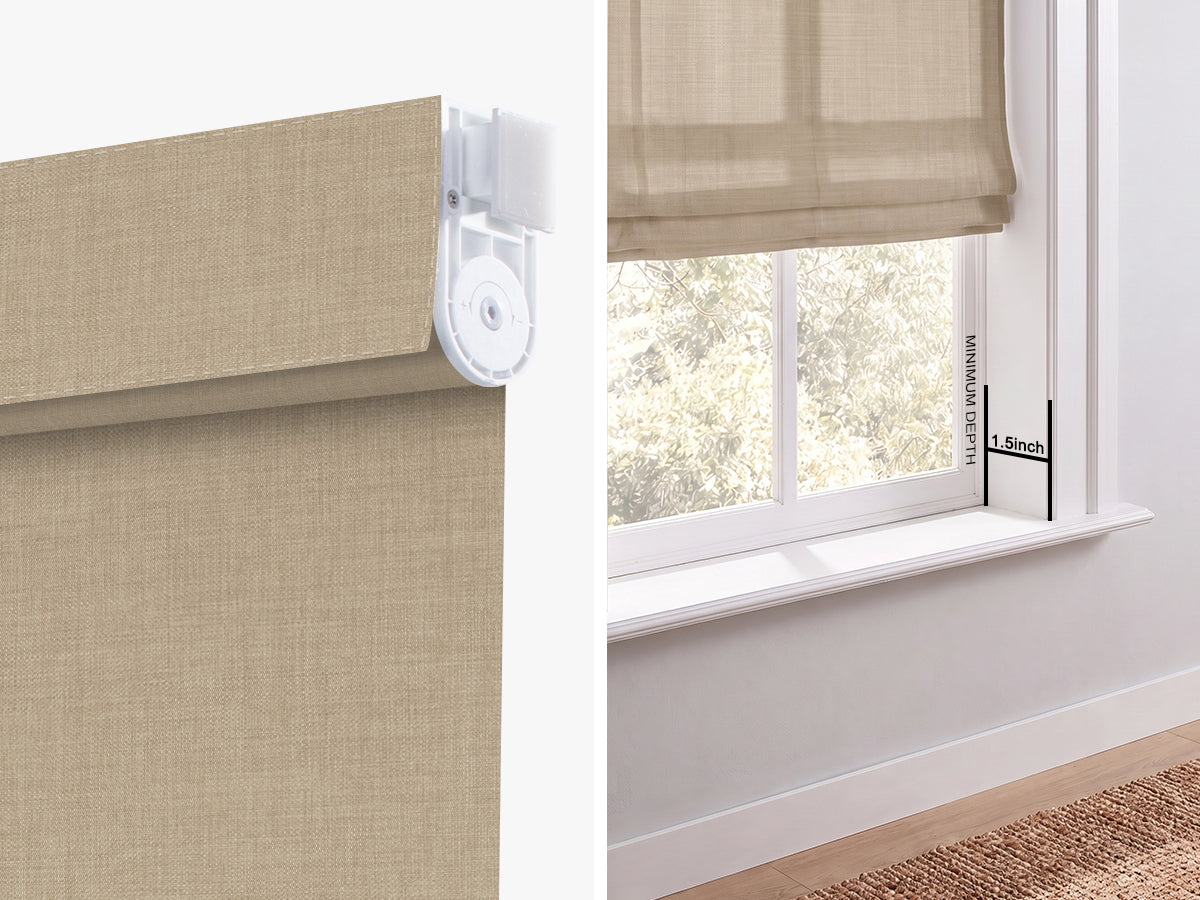

Measure the Depth

Measure the frame depth at the top of the window. Most shades need at least 1.5" for an inside mount

Measure the frame depth at the top of the window. Most shades need at least 1.5" for an inside mount

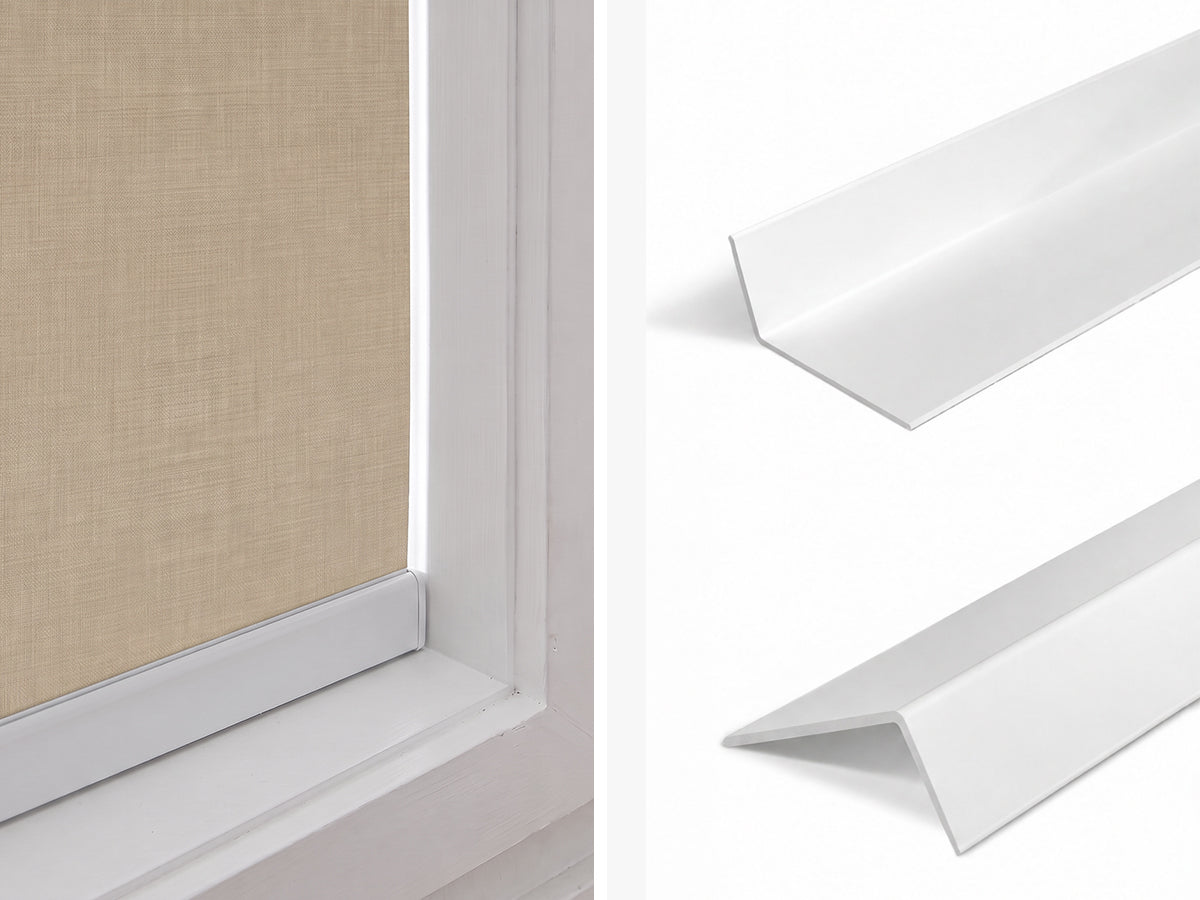

Seeing Gaps? That's Normal.

Inside-mounted shades leave a thin light gap on each side — if that matters for your room, our Light Blocking Strips can seal it.

Tips for Outside Mount

  • ✅ Quick Rule
    Width = measured width + 2–4" · Height = window height + 10"

  • Adjust based on your actual setup.

Your shade will be made exactly to the size you enter — no deductions.

Outside Mount

✅ Quick Rule
Width = measured width + 2–4" · Height = window height + 10"

📏Outside Mount: Please enter this adjusted width when ordering. Your shade will be made exactly to the size you enter — no deductions.

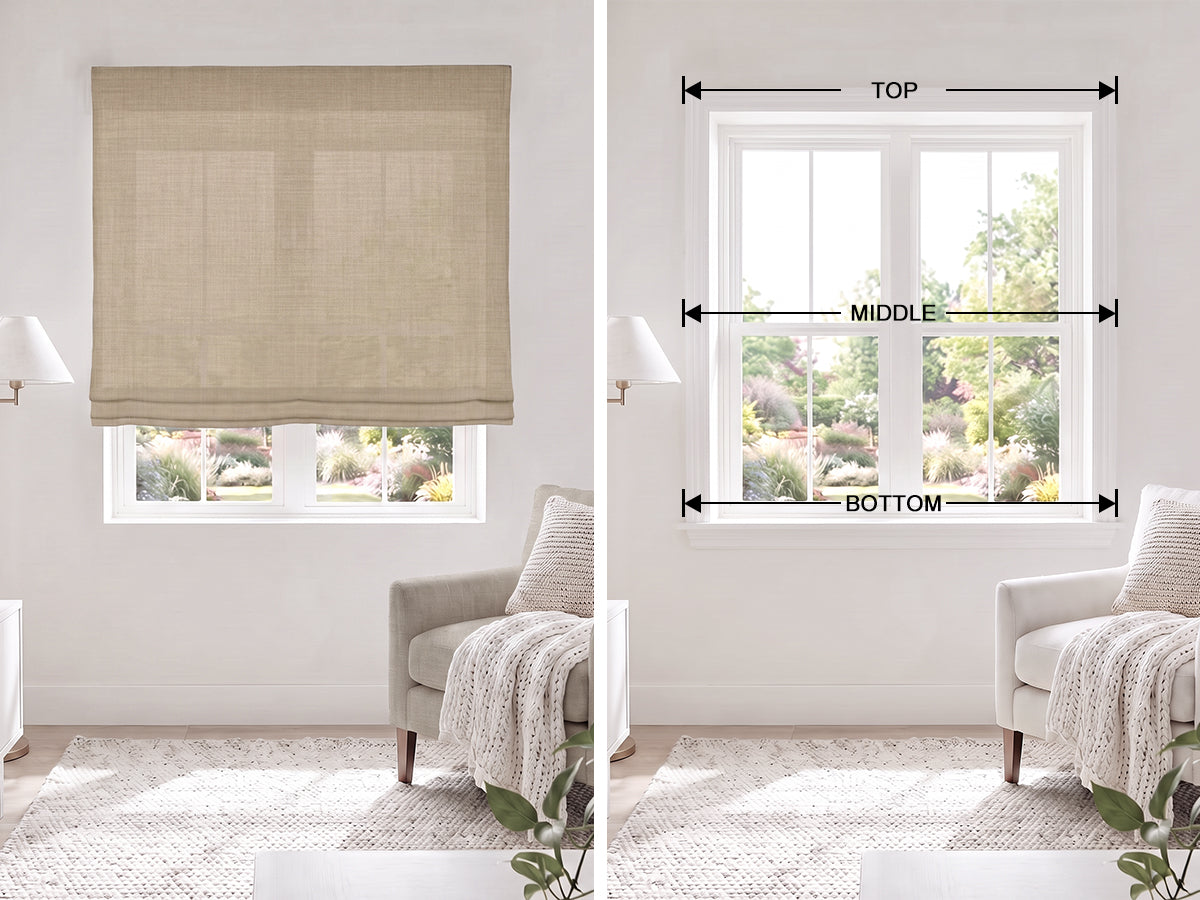

✅ Measure Width
Measure across the outside edges of the window frame. Add 2–4" to your measured width (1–2" per side) to minimize light gaps.

✅ Measure Height
Measure from your mounting point (above the frame) down to your desired bottom position. If you want enough stack space above the window and an unobstructed view when the shade is raised, add 10" inches above the top of the window — adjust based on your actual setup.

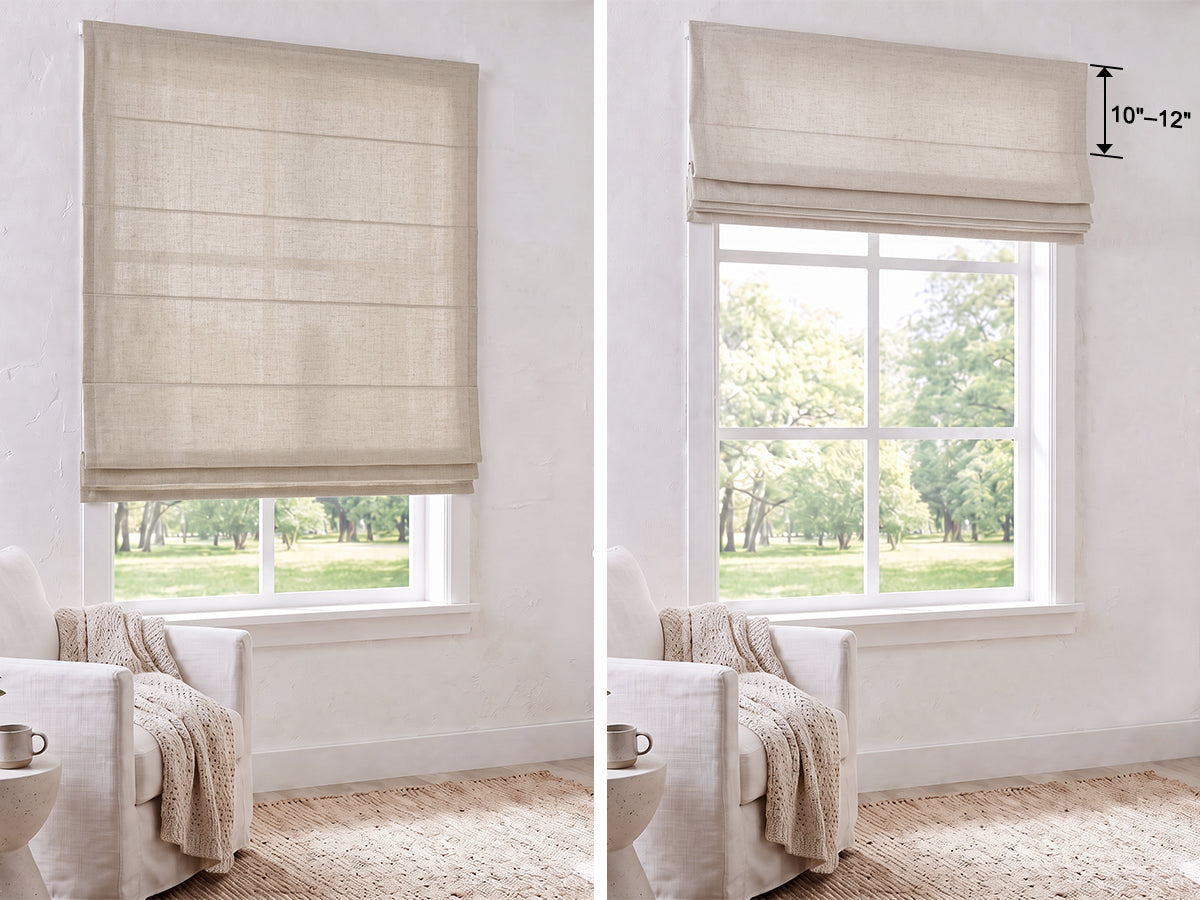

Consider Stack Height

Depending on the shade size and fabric style, approximately 8"–10" of stacked fabric may remain visible, partially covering the upper portion of the glass.
